5504 Edge Trimming

Product code
AD-5504-BLK
Model
5504
Profile type
Edge Trimming
For panel thickness
5 mm
Material
Aluminium alloy
Length
3 m per piece
Weight
0.17 kg per piece
Packing
300 pieces per carton
Colour
Black

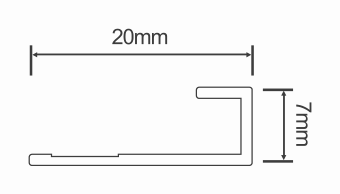

Section dimensions
20 mm, 7 mm
Certifications
RoHS, SGS, ISO, CE

Description

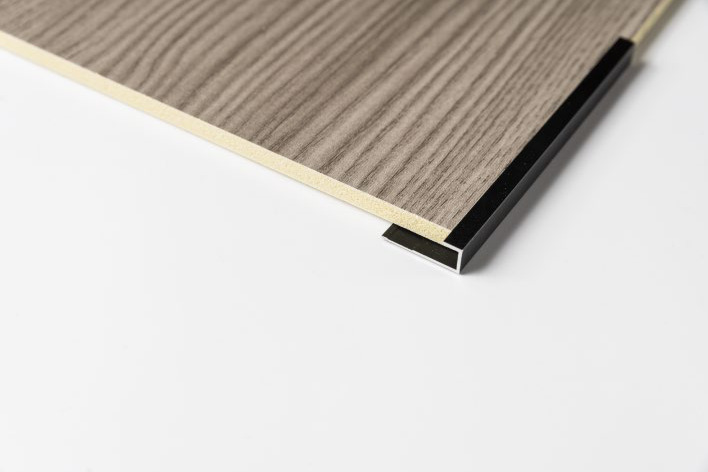

The 5504 Edge Trimming is an aluminium alloy edge trim for 5 mm wall panels, used to cover and finish the exposed edge of a panel. It is supplied in 3 m lengths in Black, Golden or Bronze, weighs 0.17 kg per piece and is packed 300 pieces per carton. Dimensions marked on the sectional drawing: 20 mm and 7 mm.
